Fume Scrubbers

Polypropylene and PVC Inline® Fume Scubbers

TFI/Inline Design VS Series Fume Scrubbers in Polypropylene or PVC are designed for laboratories and any point of use application that requires removal of acid vapors from exhausted air. perform under the most demanding corrosive environmental conditions.

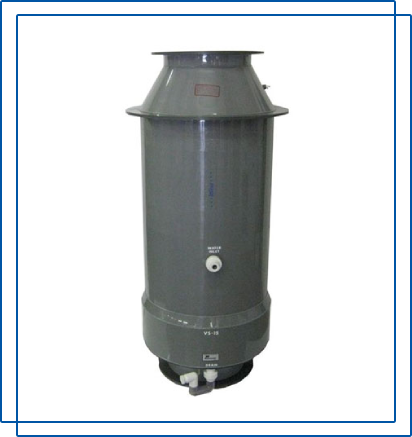

The VS Series Scrubber is a compact vertical Venturi unit designed to be installed indoors directly above an individual hood or equipment that is producing harmful vapors.

Inline Scrubber benefits:

Highly effective with all water soluble acids
No moving parts to wear and/or replace
Low water consumption at minimum 8 gallons per hour
Installs directly into existing ducting systems
Two hour average installation time with minimal tools
Allows you to isolate individual hoods or tanks that require pollution reduction
Low initial cost
Low operating cost
Sizes from 8” to 24” with larger sizes available upon request
Uses no packing material to clog or replace
Water is the only scrubbing media required with many acid environments

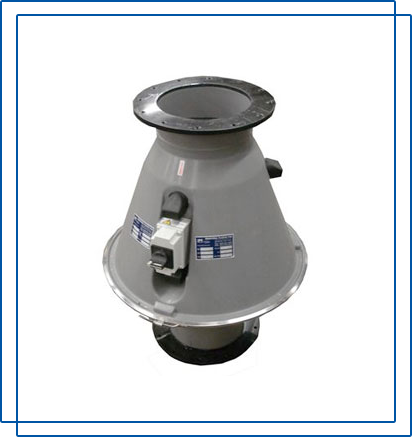

Exhaust Fans for Fume Scrubbers

TFI/Inline Design both manufactures and distributes exhaust fans that are fabricated using both PVC and polypropylene and are designed to work in corrosive environments.

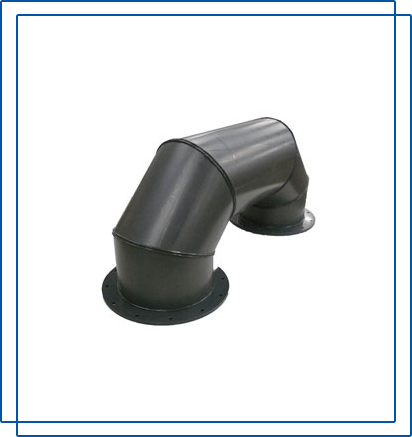

Polypropylene and PVC Ducting for Fume Scrubbers

TFI/Inline Design offers PVC ducting in 8”, 10” and 12” diameters, as well as various standard parts such as elbows, couplings, etc. The use of PVC ducting protects the ventilation system from corrosion due to the presence of corrosive acid fumes. Along with the standard sizes, custom sizes can be manufactured to fit the needs of the project.

Mighty Mini

pH Neutralization/Recirculation System

The “Mighty Mini” is a compact system designed to work in light to heavy acid digestion “Fume Hood” laboratories to neutralize and recirculate the scrubber solutions with lower water consumption and reduced costs.

This system, together with TFI’s VS series wet fume scrubbers and carbon adsorber and other products, including fume hoods and casework, provides you with a complete, safe, effective and long lasting laboratory, year after year. We diligently strive to make our products easy to use and reliable to operate, day in and day out.
